Continuous automatic sealers with shrink tunnel

HS Series

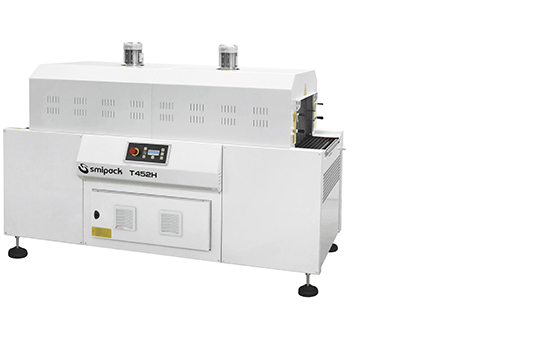

T452H - Tunnel for continuous sealer

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel.

The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power12750 W
Maximum pack height240 mm
Speed of conveyors4 - 29 m/min
Machine size2160 x 940 mm
h 1410 - 1565 mm
Machine net weight390 Kg
Usable Films: Pvc, Polyolefins and Polyethyleneup to 80 µ
  • Double-chamber shrink tunnel
  • FLXMOD® control system equipped with:
    • Alphanumeric LCD control panel provided with electronic board
    • Modular power section, separated from the control panel and equipped with:
      • inverter to control the speed of the oven belt
      • solid state relays to control the resistance module
    • This system allows a simple and precise control of all the machine operations, such as:
      • adjustment of the tunnel conveyor speed
      • adjustment of the tunnel shrinking temperature
      • possibility of scheduling up to 10 different work cycles
  • Tunnel conveyor with turning or fixed silicone-coated rollers
  • Cooling system
  • Tunnel air flow adjustable by flaps
  • Reduced power consumption
  • Compliance with CE regulations
