Modularity and excellent price/quality ratios are the main features characterizing the automatic sealers of the Full Electric 4.0 HS series. All the models of this range can indeed be supplied with or without shrink tunnel.
All models in this range are full electric, without compressed air requirement.
The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Maximum pack height
Speed of conveyors
2.8 - 18.8 m/min
2160 x 1150 mm
h 1505 - 1635 mm
Machine net weight
Usable Films: Pvc, Polyolefins and Polyethylene
up to 80 µ

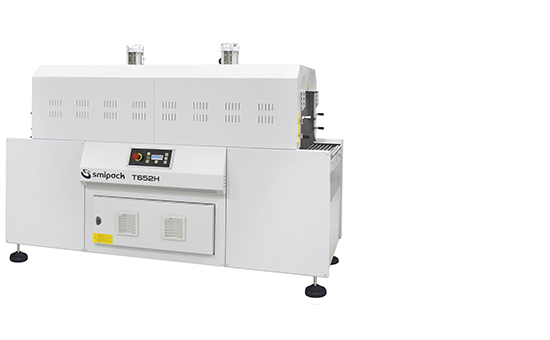

Double-chamber shrink tunnel
FLXMOD® control system equipped with:
Alphanumeric LCD control panel provided with electronic board
Modular power section, separated from the control panel and equipped with:
inverter to control the speed of the oven belt
solid state relays to control the resistance module
This system allows a simple and precise control of all the machine operations, such as:
adjustment of the tunnel conveyor speed
adjustment of the tunnel shrinking temperature
possibility of scheduling up to 10 different work cycles
Tunnel conveyor with turning or fixed silicone-coated rollers
