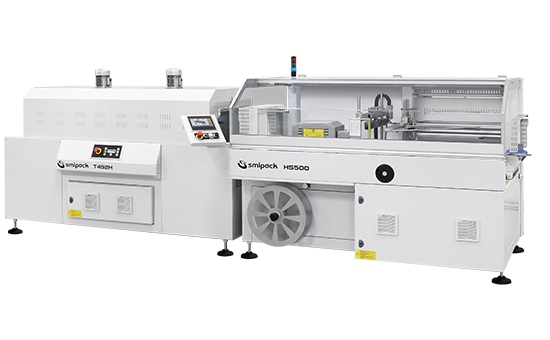

Modularity and excellent price/quality ratios are the main features characterizing the automatic sealers of the Full Electric 4.0 HS series. All the models of this range can indeed be supplied with or without shrink tunnel.
All models in this range are full electric, without compressed air requirement.
The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Maximum pack height
Speed of conveyors
11 - 45 m/min
Speed up to
6000 pph **
Maximum size of film reel
600 - ø 350 mm
2180 x 1545 mm
h 1505 - 1665 mm
Machine net weight
Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 80 my with option cross bar for Polyethylene)
up to 30 µ
(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
Continuous FULL ELECTRIC 4.0 packer with 2 belts
Intermittent working cycle
Cross sealing bar with PTFE-coated sealing blade controlled by Inverter and Encoder
Side sealing system by friction with hot blade
FLXMOD® control system equipped with:
Operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
Power and control section consisting of:
Inverters for each motor
IN/OUT control modules with 16 digital inputs/outputs
analog inputs control modules
thermocouple-reading control modules
This system is able to check all operations, simply and precisely, such as:
electronic checking of the film tension
adjustment of cross bar height
dual sealing temperature adjustment, both for the longitudinal and the cross sealer
sealing time adjustment
possibility of packaging individual packs or groups of products
electronically controlled conveyor belt speed
conveyor closing system controlled by inverter included
Motorized center seal system
50 storable programs
Infeed conveyor released from the square to facilitate the film insertion
Systems for the leading guide and the decrease of the film tension placed before the cross bar and the longitudinal
