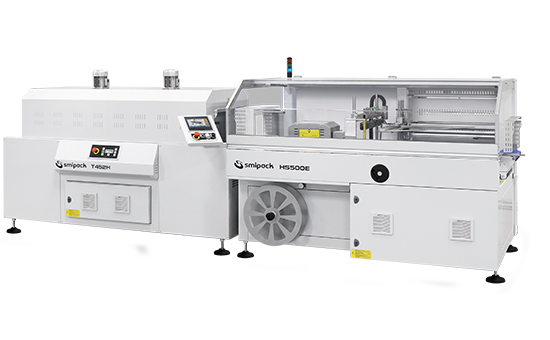

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel.

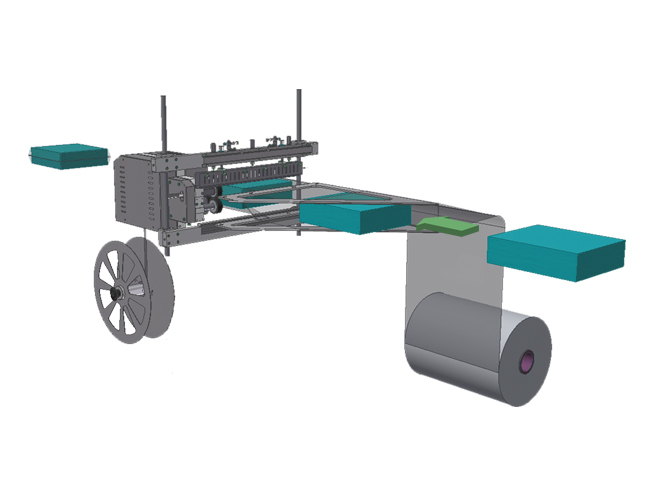

The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.
Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.
|Power supply||220 - 240 / 380 - 415 V|
|3PH + PE / 3PH + N + PE|
|Installed power||2330 W|
|Sealing bar||500 mm|
|Maximum pack height||200 mm|
|Speed of conveyors||10 - 30 m/min|
|Speed up to||4200 pph **|
|Maximum size of film reel||600 - ø 350 mm|
|Machine size||2170 x 1875 mm|
|h 1505 - 1665 mm|
|Machine net weight||715 Kg|
|Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 80 my with option cross bar for Polyethylene)||up to 30 µ|
(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
