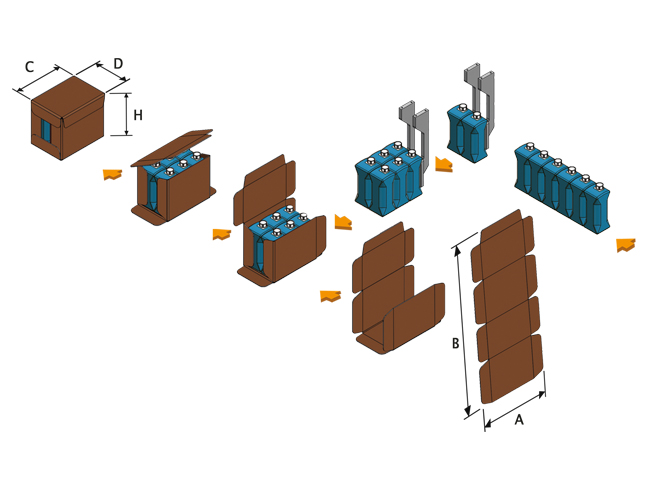

The WPS automatic wrap-around case packer has been designed to pack a large variety of products and to meet the highest production standards and quality regulations. Its compact design decreases the need of big spaces to operate, and thanks to its highly technological components, it is possible to obtain high productions in reduced times. 3 different cardboard types worked by standard models.
The WPS Series can reach productions up to 25 packs/minute.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Speed up to
Product minimum height
Product maximum height
Working board height
960 - 1105 mm
4720 x 2415 mm
h 2150-2295 mm
Machine net weight
(*) Normal Iiters per pack.
(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of material used.

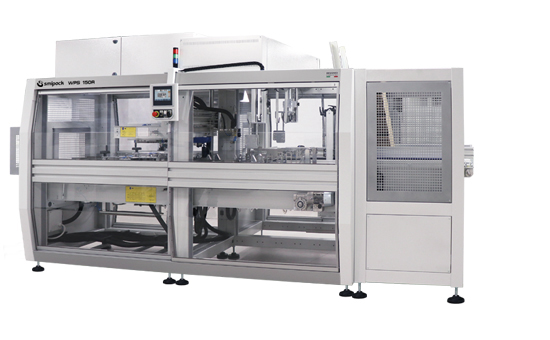

Automatic wrap-around case packer with in line infeed
Sliding protection doors with deceleration device.
Blank magazine at fixed height, equipped with motorized conveyor
Photocell for stock of cardboards
Blank magazine capacity: 300-400 pcs
Open cardboard dimensions: min 300x500 mm max 750x1300 mm – min 11.81"x19.69" mm max 29.53"x51.18" mm
Cardboard thickness: from 1,8 mm up to 3 mm or from 0,54 mm up to 0,60 mm (kraft)
Automatic pack collation

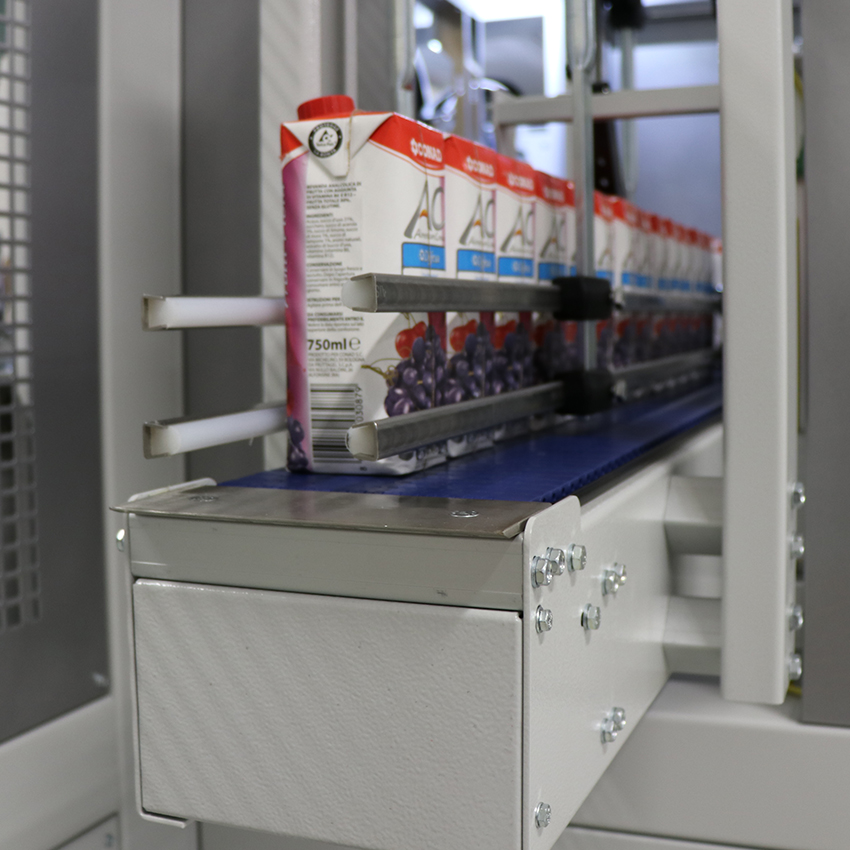

In line infeed conveyor with adjustable speed controlled by Inverter
One-row or multi-row infeed
Photocell for infeed conveyor speed change
Product presence photocells
Accumulation/control rows photocells

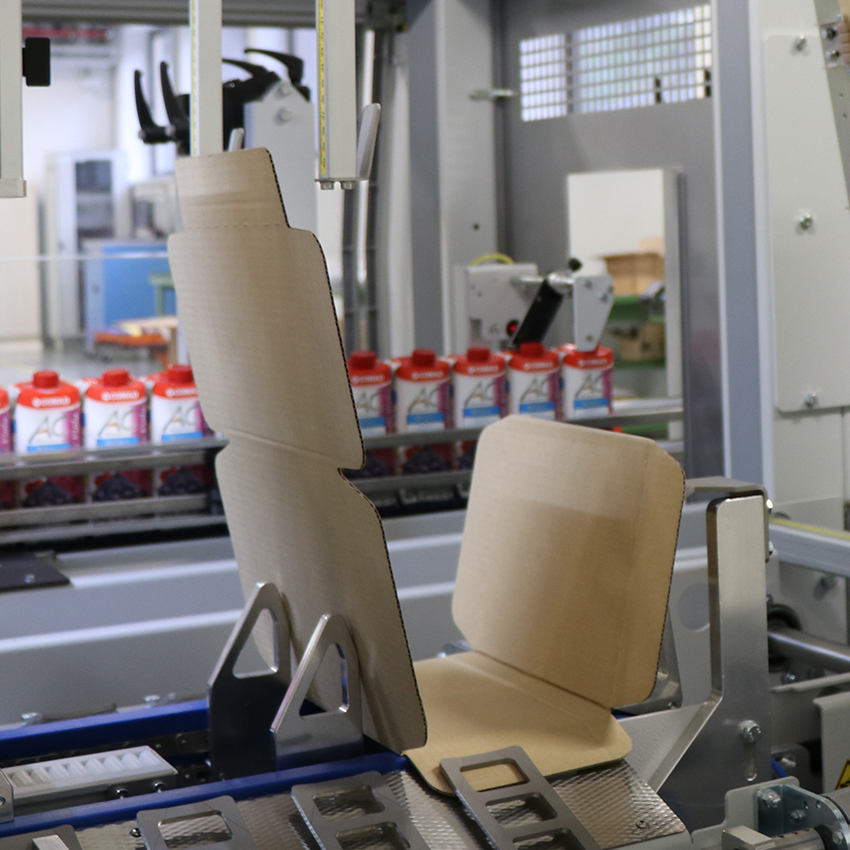

Cardboards pick-up by means of an oscillating arm with suction cups, driven by servomotor
Automatic positioning of the cardboards pick-up and release point, driven by gearmotor and controlled by encoder and inverter
Cardboard positioning on the polizene guides, without contact with the transmission chains
Electronic forming unit driven by 4 servomotors, with automatic adjustment of the carton depth
Pneumatic side vanes to guide the cardboard flaps

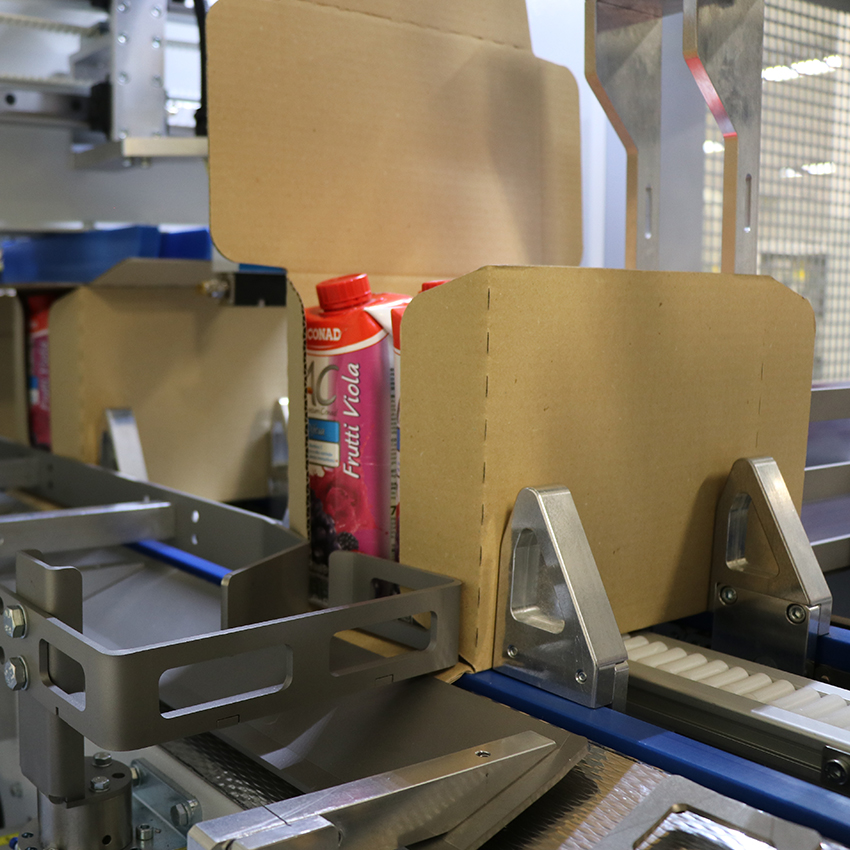

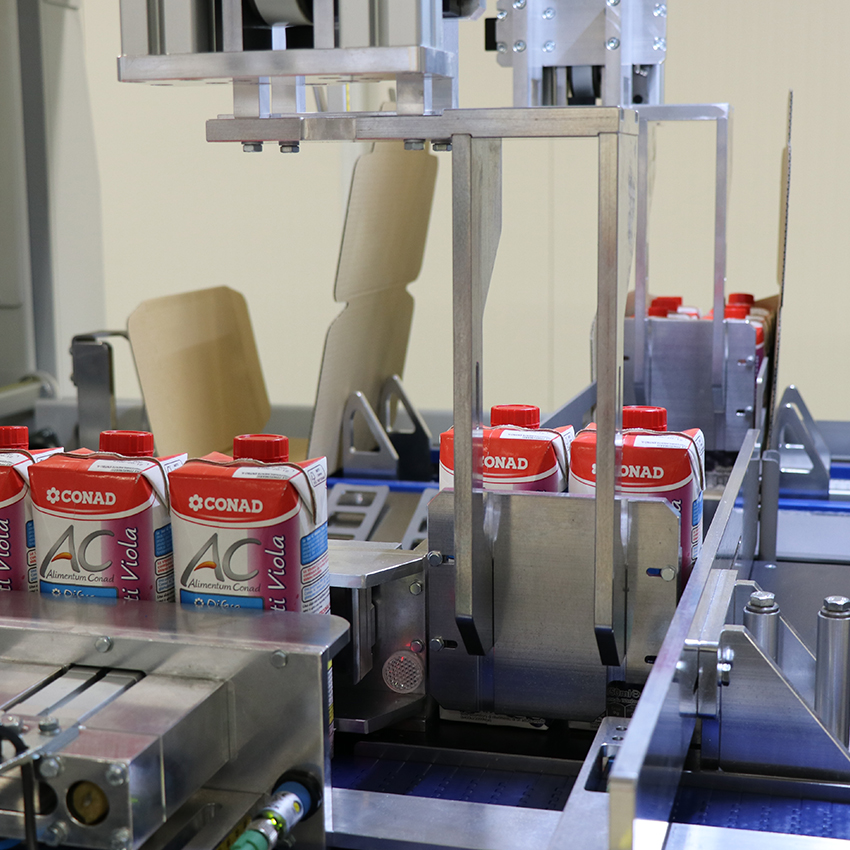

Load of the product into the open U-shaped carton with double 2 cartesian axis motorized pusher controlled by 4 servomotors
Gate with pneumatic movement with opening function and guide of the prooducts

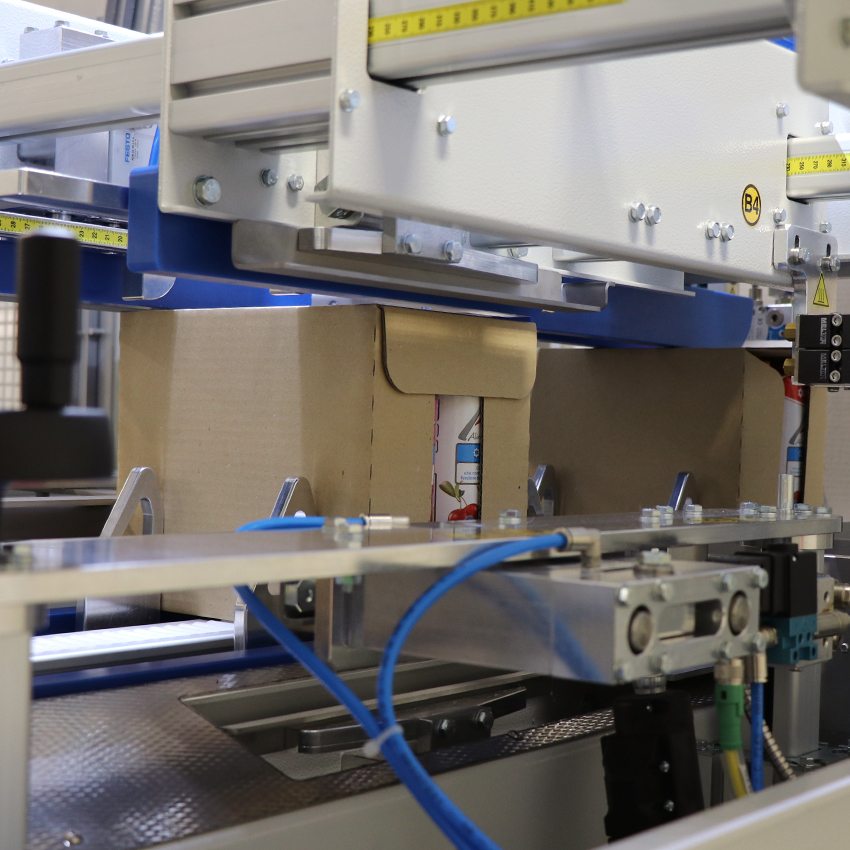

Closure of the inside lateral flaps by pneumatic actuators
Folding of the upper part of the cardboard by means of fixed contrast
Motorized transversal Hot melt glue applicator, controlled by inverter and encoder
4 longitudinal fixed gluing points

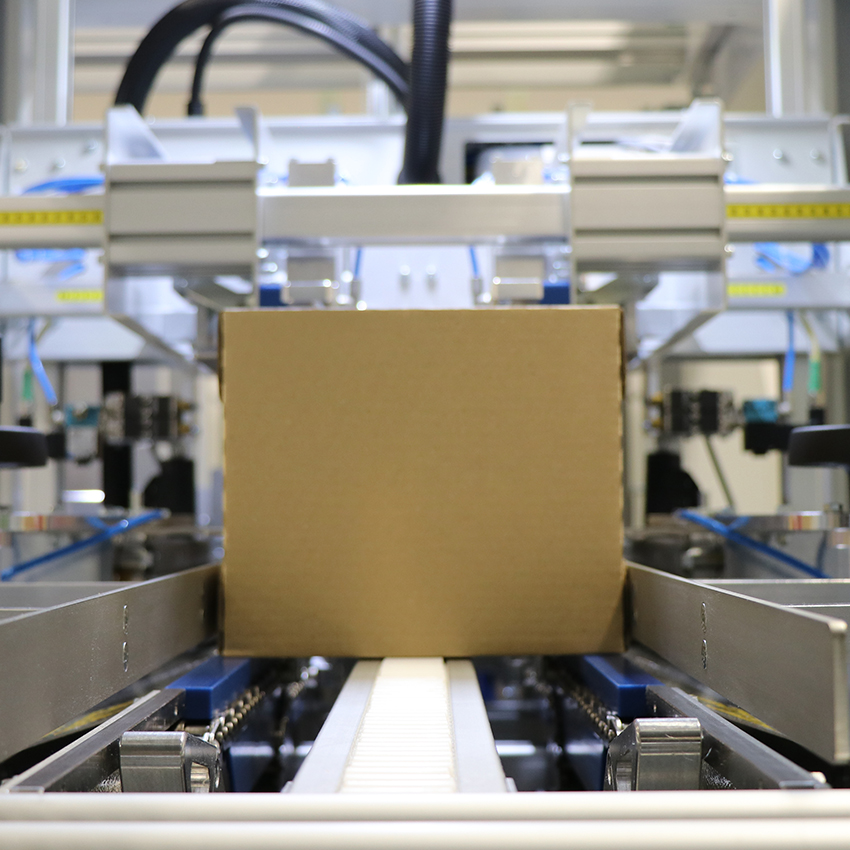

Closure of the external flaps and squaring of the finished case by pneumatic actuators
Flxmod® control system equipped with:
operator Interface 7" full-colour touch screen sliding all along the length of the machine
inverter with integrated encoder reading
IN/OUT control modules
50 different memorisable working cycles
4.0 industry compliant
Designed and manufactured according to CE regulations
