The new FW series of automatic packaging machines with flow pack system, designed according to Industry 4.0 and IoT (Internet of Things) technological platforms, is the family of machines that completes the SMIPACK range. The version with rotary bar sealing system is composed of 6 models (four with upper reel and two with lower reel) and packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack); the products are placed in packages made up of simple or coupled flexible material with a maximum output between 60 and 200 products/minute (based on the selected model).
Thanks to the three pairs of pneumatic opening wheels, which perform the dragging, longitudinal sealing and film folding operations, and the dynamic or adjustable conformer complete with accessories, the packaging process of the new FW models is simple and fast.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Compressed air pressure
Maximum product height
Speed up to
100** / 200*** ppm*
Maximum size of film reel
750 - ø 350 mm
4085 x 1580 mm
h 2155 - 2255 mm
Machine net weight
(*) Products per minute. The stated speed can change according to the product size, the pack collation and the type of film used.
(**) With one cross sealing bar.
(***) With two cross sealing bars.

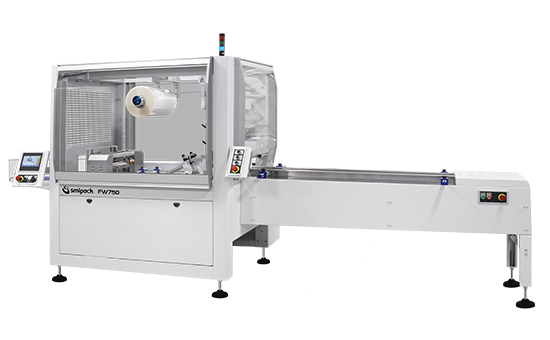

High reel flow pack wrapper
Sealing system with rotary bar
Sliding surfaces of the products in AISI304
1500 mm - 59.06" infeed conveyor with adjustable guides
Easily removable interlocking vanes

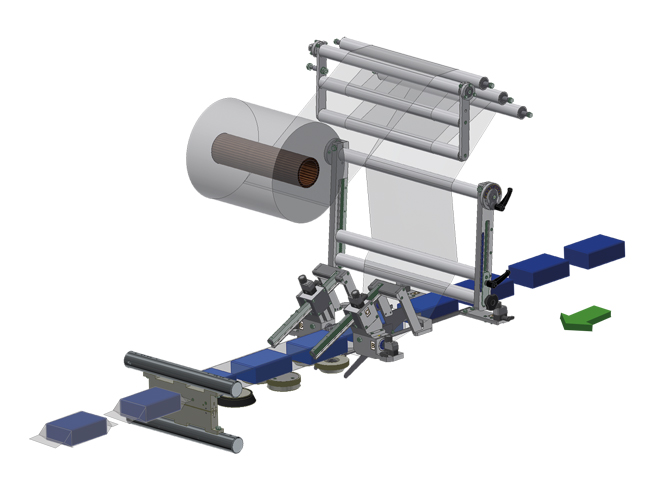

Longitudinal sealing consisting of 3 pairs of drive wheels, the first pair pulls the film, the second does the sealing and the third folds the film
Pneumatic opening of the longitudinal sealing wheels
Motorized high reel holder
Pneumatic expansion reel holder shaft
Motorized product outfeed conveyor
Outfeed conveyor adjustable in height by handwheel
Cross sealing with bar 350 mm – 13.78” width
Standard dynamic film conformer complete with accessories
Variation of the sealing bar height position by means of a motor, storable by program (center seal)
Drawers to collect product waste, under the entire length of the infeed conveyor
Motors configuration controlled by inverters: reel holder/outfeed conveyor with independent asynchronous motors
Motors configuration controlled by drivers: infeed conveyor/cross sealer/ longitudinal sealer with indipendent brushless
Machine stop in phase
FLXMOD® control system equipped with:
operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
IN/OUT control modules for digital, analog inputs/outputs and thermocouple-reading control.
This system is able to check all operations, simply and precisely, such as:
electronic checking of the film tension
adjustment of product height storable by program
three sealing temperature adjustments, one on the longitudinal sealer, one on the upper cross sealer and one on the lower cross sealere
electronically controlled conveyor belt speed
Possibility of scheduling up to 50 different work cycles
