Automatic flow pack machines

FW Series

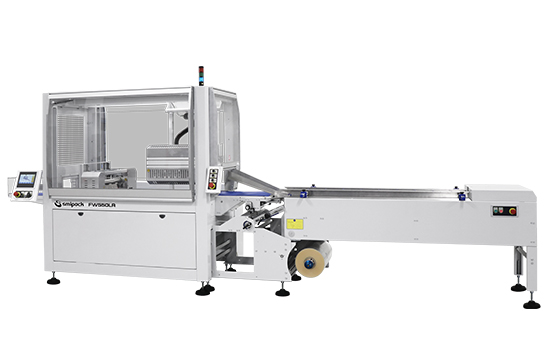

FW550LR - Flow pack machines with rotary sealing and lower film reel

The new FW series of automatic packaging machines with flow pack system, designed according to Industry 4.0 and IoT (Internet of Things) technological platforms, is the family of machines that completes the SMIPACK range. The version with rotary bar sealing system is composed of 6 models (four with upper reel and two with lower reel) and packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack); the products are placed in packages made up of simple or coupled flexible material with a maximum output between 60 and 200 products/minute (based on the selected model).

Thanks to the three pairs of pneumatic opening wheels, which perform the dragging, longitudinal sealing and  film folding operations, and the dynamic or adjustable conformer complete with accessories, the packaging process of the new FW models is simple and fast.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power5900 W
Compressed air pressure6 bar
Sealing bar250 mm
Maximum product height120 mm
Speed up to 100 ppm*
Maximum size of film reel550 - ø 350 mm
Machine size4805 x 1375 mm
h 2155 - 2255 mm

_

  • Low reel flow pack machine
  • Sealing system with rotary bar
  • Sliding surfaces of the products in AISI304
  • 2000 mm - 78.74" infeed conveyor with adjustable guides
  • Product loading infeed conveyor with belt (vanes system as optional)
  • Removable infeed conveyor to facilitate cleaning
  • Longitudinal sealing consisting of 3 pairs of drive wheels, the first pair pulls the film, the second does the sealing and the third folds the film
  • Pneumatic opening of the longitudinal sealing wheels
  • Motorized low reel holder
  • Pneumatic expansion reel holder shaft
  • Motorized product outfeed conveyor
  • Outfeed conveyor adjustable in height by handwheel
  • Cross sealing with bar 250 mm - 9.84" width
  • Standard adjustable film conformer complete with accessories
  • Variation of the sealing bar height position by means of a motor, storable by program (center seal)
  • Variation of the longitudinal sealer height position by means of a motor, storable by program (center seal)
  • Drawers to collect product waste, under the entire length of the infeed conveyor
  • Motors configuration controlled by inverters: reel holder/outfeed conveyor with independent asynchronous motors
  • Motors configuration controlled by drivers: infeed conveyor/intermediate conveyor/cross sealer/ longitudinal sealer with indipendent brushless
  • Machine stop in phase
  • FLXMOD® control system equipped with:
    • operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
    • IN/OUT control modules for digital, analog inputs/outputs and thermocouple-reading control.
  • This system is able to check all operations, simply and precisely, such as:
    • electronic checking of the film tension
    • adjustment of product height storable by program
    • three sealing temperature adjustments, one on the longitudinal sealer, one on the upper cross sealer and one on the lower
      cross sealere
    • electronically controlled conveyor belt speed
    • process statistics:
      • pack counter
      • instantaneous production
      • machine efficiency
  • Possibility of scheduling up to 50 different work cycles
  • Emergency button
  • Reduced power consumption
  • Compliance with CE regulations
