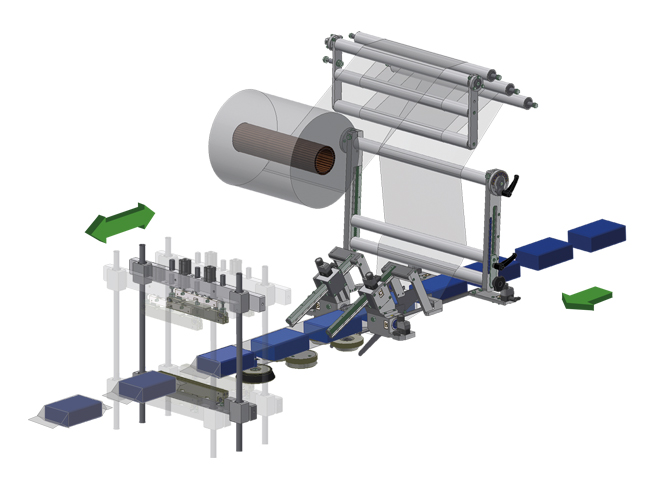

The new FW series of automatic packaging machines with flow pack system, designed according to Industry 4.0 and IoT (Internet of Things) technological platforms, is the family of machines that completes the SMIPACK range. This medium-high speed version is composed of 4 models (two with upper reel and two with lower reel) and stands out for the presence of a cross sealing bar with box motion system, both controlled by servomotors. The translating movement allows to pack a wide variety of long-life products (through injection of gas or nebulization of preservative flavorings) with different sizes and heights, without machine downtime, in packages made with simple or coupled flexible material (including polyethylene/polyolefin film).
Thanks to a dynamic or adjustable conformer complete with accessories and the three pairs of pneumatic opening wheels, which carry out the dragging, longitudinal sealing and film folding operations, these packaging machines can reach the maximum output of 80 products/minute.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Compressed air pressure
Maximum product height
Speed up to
Maximum size of film reel
550 - ø 350 mm
4300 x 1375 mm
h 2155 - 2255 mm

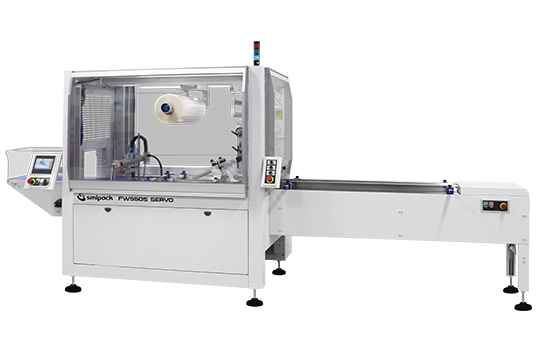

High reel flow pack machine
Continuous working cycle (box motion) by cam electronics self-configuring
Sliding surfaces of the products in AISI304
1500 mm - 59.06" infeed conveyor with adjustable guides
Easily removable interlocking vanes
Longitudinal sealing consisting of 3 pairs of drive wheels, the first pair pulls the film, the second does the sealing and the third folds the film
Pneumatic opening of the longitudinal sealing wheels
Motorized high reel holder
Pneumatic expansion reel holder shaft
Motorized product outfeed conveyor
Cross sealing with bar 250 mm - 9.84" width
Standard dynamic film conformer complete with accessories
Variation of the sealing bar height position by means of a motor, storable by program (center seal)
Variation of the longitudinal sealer height position by means of a motor, storable by program (center seal)
Drawers to collect product waste, under the entire length of the infeed conveyor
Motors configuration controlled by inverters: reel holder with asynchronous motor
Motors configuration controlled by drivers: infeed conveyor/cross sealer/ longitudinal sealer/outfeed conveyor with indipendent brushless
Machine stop in phase
FLXMOD® control system equipped with:
operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
IN/OUT control modules for digital, analog inputs/outputs and thermocouple-reading control.
This system is able to check all operations, simply and precisely, such as:
electronic checking of the film tension
adjustment of product height storable by program
three sealing temperature adjustments, one on the longitudinal sealer, one on the upper cross sealer and one on the lower cross sealere
electronically controlled conveyor belt speed
Possibility of scheduling up to 50 different work cycles
