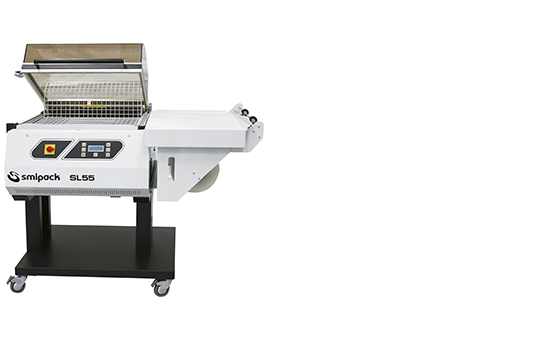

The SL series is designed for clear-cut market segments as it provides quite a low output. It represents the entry level of SMIPACK production range, even though it keeps most of the features of the S series.
The SL series of L-sealing hood packers includes two models for outputs ranging up to 300 packs/hour.
220 - 240 V
1PH - N - PE
560 x 430 mm
Maximum pack height
Average output up to
300 pph **
Maximum size of film reel
600 - ø 250 mm
Machine size with supports
1260 x 805 h 1100 mm
Machine size with stand
1240 x 805 h 1102 mm
Machine / supports / stand, net weight
77 / 11 / 18 Kg
Usable Films: Pvc, Polyolefins
up to 30 µ
(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
Sealing and shrinking in one operation
PTFE-coated sealing blade
Height adjustment of the internal packaging plate
Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
Hood hold-down electromagnet
Automatic hood release
Air cooling of the machine frame
Alphanumeric LCD control panel equipped with 6 storable work programs and a 16-bit microprocessor card, that allows a simple and precise control of all the machine operations, such as:
number of packs produced by an electronic pack counter
adjustment of the sealing temperature
adjustment of the shrinking time
adjustment of the shrinking chamber temperature
adjustment of the shrinking delay
adjustment of the hood opening delay
Long-lasting solid state relays providing easier maintenance
