Semi-automatic and automatic L-sealers with shrink tunnel

FP Series

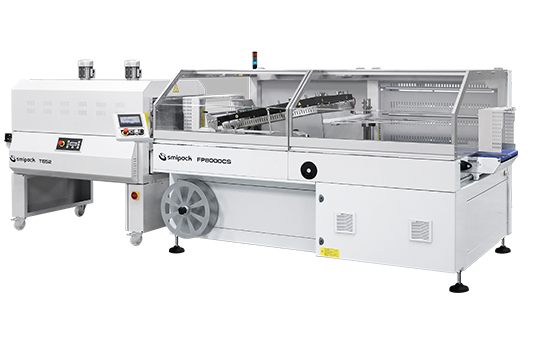

FP8000CS - Automatic L-sealers

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.

The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.

Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power3950 W
Sealing bar840 x 710 mm
Maximum pack height250 mm
Speed of conveyors10 - 30 m/min
Output up to2700 pph **
Maximum size of film reel850 - ø 350 mm
Machine size2625 x 1895 mm
h 1605-1765 mm
Machine net weight820 Kg
Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 60 my with option sealing bar for Polyethylene)up to 30 µ

(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • FULL ELECTRIC L-sealer
  • Motorized sealing bar controlled by inverter and encoder
  • Motorized conveyor closing system controlled by inverter (optional)
  • Motorized center seal system
  • PTFE-coated sealing blade
  • Emergency button
  • Safety device
  • Continuous cycle sealing
  • FLXMOD® control system equipped with:
    • 4,3" graphic LCD control panel with PLC
    • Modular power section made up by:
      • inverter for all motors
      • IN/OUT (inlet/outlet) digital and analog control modules
    • This system allows a simple and precise control of all the machine operations, such as:
      • possibility of storing up to 20 different operation programs
      • automatic control of the sealing bar height
      • double adjustment of the sealing blade temperature, both lengthways and broadways
      • sealing time adjustment
      • possibility of packing single packs or multipacks
      • speed of conveyorselectronically adjustable from the control panel
      • process statistics
  • Reduced power consumption
  • Compliance with CE regulations
