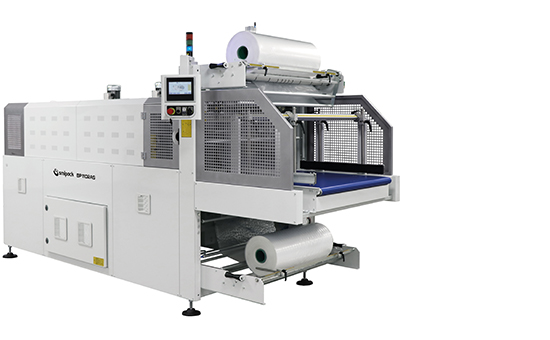

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film.
Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute.
Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, poultry farming (egg trays), printing industry, stationery, computer industry, household products, aerosols, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, shampoo-detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.
|Power supply||220 - 240 / 380 - 415 V|
|3PH + PE / 3PH + N + PE|
|Installed power||26700 W|
|Air pressure||6 Bar|
|Required air||13 Nl/p*|
|Maximum output up to||15 ppm**|
|Product maximum height||380 mm|
|Sealing bar||1070 mm|
|Maximum size of film reel||1050 x Ø 350 mm|
|Working board height||945 - 1105 mm|
|Machine size||3670 x 1710 mm|
|h 2105 - 2265 mm|
|Machine net weight||980 Kg|
|Advised film: LDPE||20 - 100 µ|
(*) Normal Iiters per pack.
(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.
