The new series of monoblock semi-automatic and automatic shrink wrappers with sealing bar BP are extremely versatile: they can pack various products, such as glass and PET bottles, cans, boxes, trays, jars, cartons of different sizes in a wide range of pack collations. They can be used in several industry segments, such as beverages, food, chemicals, wine and spirits, cosmetics, detergents, wood, textile, graphic etc.
The BP series allows SMIPACK to meet a wide variety of customers’ demands and to ensure a very good quality/price ratio.
220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
Maximum output up to
Product maximum height
Maximum size of film reel
750 x Ø 350 mm
Working board height
945 - 1105 mm
3675 x 2550 mm
h 2105 - 2265 mm
Machine net weight
Advised film: LDPE
20 - 100 µ
(*) Normal Iiters per pack.
(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

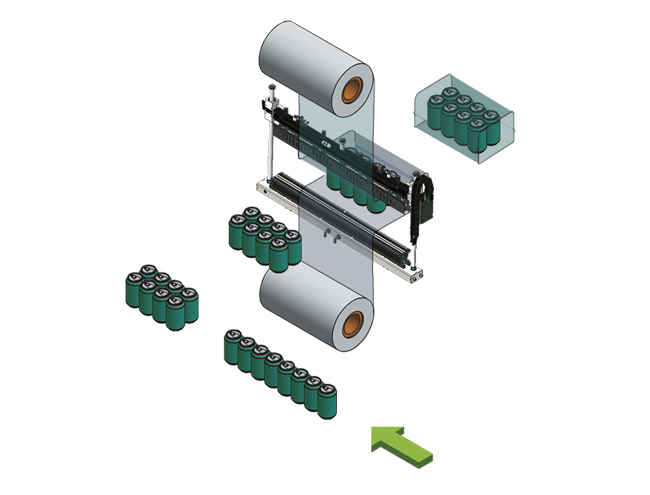

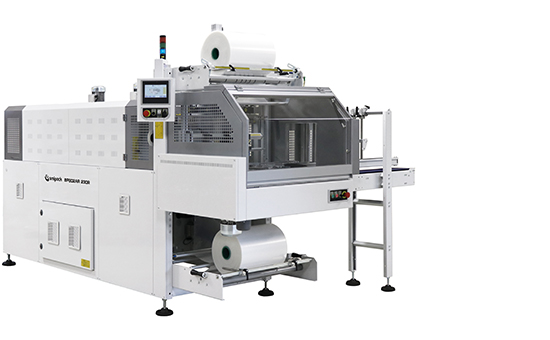

Automatic shrink wrappers with 90° infeed
Automatic pack collation
90° Infeed conveyor with adjustable speed controlled by inverter
Product carrying by automatic left or right conveyor
Available infeed lanes: 1,2
Product presence, infeed obstruction photocells
Infeed pneumatic press rod
Motorized pusher controlled by inverter and encoder
Motorized upper film unwinding controlled by inverter
Motorized lower film unwinding
Automatic, semiautomatic, pass through mode
Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
Pneumatic sealing bar equipped with safety sensors
Pneumatic fi lm cut by cold blade
Rollers are positioned on the upper and lower unwinders to make the reels easier to load
Metric graduation based film reels centering system
FLXMOD® control system equipped with:
operator Interface 7" full-colour touch screen
inverter with integrated encoder reading
IN/OUT control modules
50 different memorisable working cycles
Tunnel air flow adjustable by means of independent deflectors
Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
the conveyor can bear a product weight up to 30 kilos
the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
