Semi-automatic and automatic shrink wrappers with sealing bar

BP Series

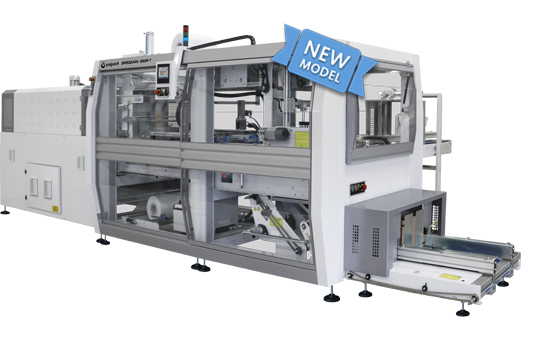

BP802ARV 280R-T - Monoblock automatic shrinkwrapper with 90° infeed, sealing bar and tray insertion device

The new series of monoblock semi-automatic and automatic shrink wrappers with sealing bar BP are extremely versatile: they can pack various products, such as glass and PET bottles, cans, boxes, trays, jars, cartons of different sizes in a wide range of pack collations. They can be used in several industry segments, such as beverages, food, chemicals, wine and spirits, cosmetics, detergents, wood, textile, graphic etc.

The BP series allows SMIPACK to meet a wide variety of customers’ demands and to ensure a very good quality/price ratio.

Power supply220 - 240 / 380 - V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power35500 W
Required air20,5 Nl/p*
Maximum output up to20 ppm**
Product maximum height380 mm
Sealing bar760 mm
Working board height945 - 1105 mm
Machine size6860 x 3355 mm
h 2105 - 2265 mm
Machine net weight2500 Kg


  • Automatic shrinkwrappers with 90° infeed
  • Sliding protection doors with deceleration device
  • Automatic pack collation

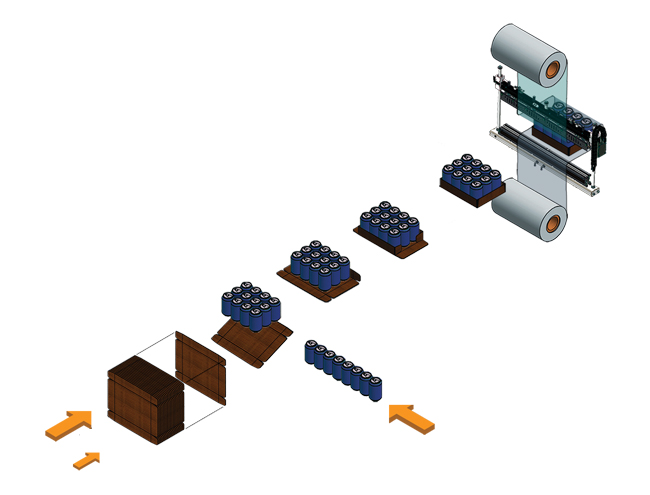

  • Cardboard inserting device:
    • picking by pneumatic picker
    • cardboards stock 300 pcs
    • cardboards dimensions min 200x120 mm max 600x400 mm
    • tray dimensions min 150x60 mm max 500x320 mm
    • dimensions of tray flaps min 30 mm max 80 mm
    • cardboard thickness min 2,5 mm max 3,5 mm
    • motorized cardboard carrying, self centering, controlled by inverter and encoder
    • mechanical cardboard insertion under the pack controlled by inverter and encoder, electronically synchronized with the arrival of the products
    • hot melt glue application system
  • Working modality: only film or tray + film
  • Double-chamber tunnel
  • 90° Infeed conveyor with adjustable speed controlled by inverter
  • Product carrying by automatic left or right conveyor
  • Available infeed lanes: 1, 2, 3
  • Product presence, outfeed accumulation, infeed and outfeed obstruction photocells
  • Infeed pneumatic press rod
  • Pneumatic depressor
  • Multi-thrust system
  • Motorized pusher controlled by inverter and encoder
  • Chain separator controlled by Inverter and Encoder
  • Pneumatic products guides, synchronized with the chain pusher, to facilitate the formation and transition of the pack over the sealing bar
  • Motorized upper film unwinding controlled by inverter
  • Motorized lower film unwinding
  • Automatic, semiautomatic, pass through mode
  • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
  • Monoblock frame
  • Pneumatic sealing bar equipped with safety sensors
  • Pneumatic film cut by cold blade
  • Rollers are positioned on the upper and lower unwinders to make the reels easier to load
  • Metric graduation based fi lm reels centering system
  • FLXMOD® control system equipped with:
    • operator Interface 7" full-colour touch screen sliding all along the length of the machine
    • Plc
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • 50 different memorisable working cycles
  • Tunnel air flow adjustable by means of independent deflectors
  • Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
    • the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • the conveyor can bear a product weight up to 30 kilos
    • the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
    • the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
  • Oven cooling system
  • Low power consumption
  • 4.0 industry compliant
  • Compliance with CE regulations
