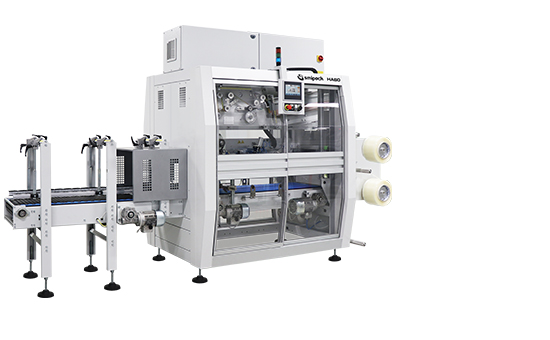

The HA automatic handle applicators can apply handles on shrink fi lm packs, cardboard cases, briks, paper rolls or any type of rigid packs. The HA series can apply different types of handles, joined to a transparent adhesive tape and made from:
precut cardboard labels
pre-handled adhesive tape reels
paper and polypropylene handles on reel
At the moment, 4 models are available, differing in their speed: HA 25, HA 40, HA 60, HA 80. They grant, respectively, outputs of 25, 40, 60, 80 packs per minute -PPM-, considering the pack dimensions. All HA models can be confi gured to be placed in lines with single or double lane.
Maximum output up to
Working board height
3520 x 1403 mm
h 2150-2310 mm
(**) the stated speed can change according to the product size and the pack collation.
Mono-block frame made of painted steel
Sliding protective doors with deceleration device
Rubber-coated infeed conveyor, with chains made from a thermoplastic material providing a high coefficient of friction
Variable speed Intralox infeed conveyor
Cardboard labels provided with pneumatic withdraw and electronic control of the handle pitch
Handle central support magazine for cardboard labels, with capacity up to 5,000 pieces, positioned in the upper part of the machine and supplied with a beep when the label is missing
Pneumatic handle positioning and cut on the pack in motion, with electronic control of the handle length and supplied with a beep when the label is missing
Reel mandrils with pneumatic locking
Motorized reel support with pneumatic locking and automatic tensioning of the adhesive tape dragging by a motorised wheel driven by Encoder and Inverter
FLXMOD® control system equipped with:
7” full-colour touch screen display that slides along the entire length of the machine
inverter with integrated encoder reading
IN/OUT control modules
Possibility of scheduling up to 50 different work cycles
